| Brand | ASUS |
|---|---|
| Series | NUC14RVH |
| Item model number | NUC14RVHU5 |
| Hardware Platform | PC |
| Operating System | Windows 11 Pro |
| Item Weight | 3.72 pounds |
| Package Dimensions | 8.43 x 7.56 x 6.18 inches |
| Color | black |
| Processor Brand | Intel |
| Number of Processors | 1 |
| Computer Memory Type | DDR5 SDRAM |
| Hard Drive Interface | PCIE x 16 |
| Hard Drive Rotational Speed | 1 |
| Max Screen Resolution | 3840 x 2160 pixels |
|---|---|
| Processor | 4.5 GHz apple_ci5 |
| RAM | 32 GB DDR5 |
| Hard Drive | 512 GB SSD |
| Chipset Brand | Intel |
| Card Description | Integrated |
| Wireless Type | 802.11ax |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |

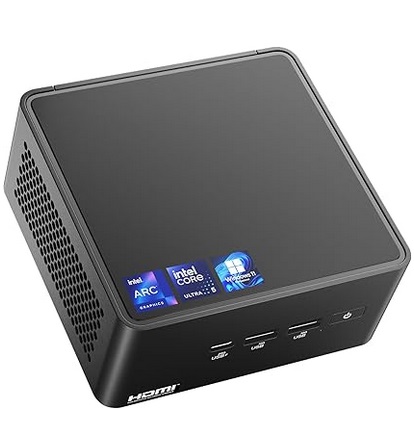

| Model | ASUS NUC 14 Pro Mini PC (NUC14RVH Revel Canyon) |
| CPU | Intel Core Ultra 5 125H Processor |
| Chipset | Integrated |
| Graphics | Integrated - IntelArc Graphics * Arc GPU System requires 128-bit dual channel memory for optimal performance |
| Memory | 2 x SO-DIMM 16GB DDR5-5600 memory |
| Storage | 1 x M.2 2280 PCIe Gen4x4 NVMe 512GB / 1x M.2 2242 PCIe Gen4x4 NVMe SSD Slot for add-on card / 2.5" HDD & SSD support |
| Operating System | Windows 11 Pro |
| Wireless Data Network | Intel Wi-Fi 6E (Gig+) 2x2 + Bluetooth 5.3 Wireless Card (*Bluetooth v5.2 and later version functions to be supported in Windows 11 or later. *WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.) |
| LAN | 1 x Intel I226V, 2.5G LAN |
| Front(Side) I/O Ports | 1 x USB 3.2 Gen2x2 Type C (20Gbps) / 2 x USB 3.2 Gen2 Type A / 1 x Kensington Lock |
| Back I/O Ports | 2 x Thunderbolt 4 Type-C Ports / 1 x USB 3.2 Gen 2 Type-A / 1 x 2.0 Type-A / 2 x HDMI 2.1 (TMDS) ports / 1 x RJ45 LAN Port / 1 x DC-in |
| Power Supply | 120W Power Adapter |
| Dimensions (W x D x H) | 117 x 112 x 54 mm (0.7L) |
| Weight | 750g |
